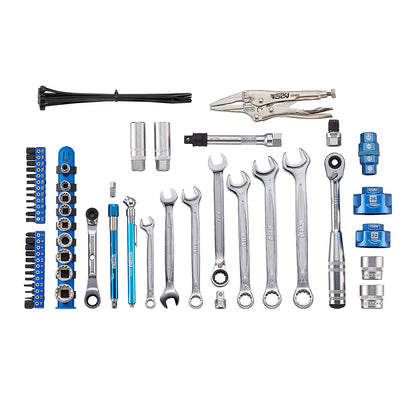

  • Every tool in the Suzuki motorcycle tool set laid out flat
  • T-handle and extension configurations from the Suzuki set
  • 3-in-1 multi-tool T-handle from the Suzuki set
  • 32mm aluminium socket from the Suzuki set
  • 36mm aluminium socket from the Suzuki set
  • Oil filter socket from the Suzuki set
  • Stepped hex axle tool, 17, 19, 22 and 24mm
  • Poplock extension and socket being connected by hand
  • Telescopic extension being adjusted by hand
  • Extension and ratchet combinations for extra torque

Suzuki Motorcycle Tool Set

Suzuki Motorcycle Tool Set

$349.00
$349.00
SAVE Sold out

Out of stock right now. Leave your email and you will hear the moment it lands.

SBV Suzuki Motorcycle Tool Set, roll-up kit open with all tools in place

Suzuki Motorcycle Tool Set

$349.00
$349.00
SAVE Sold out

What's included

Basic Motorcycle Tool Set (52501)
  • 3-in-1 Multi-tool "T-handle | 1/4" Dr. Hex bit ratchet | 11mm ratchet"
  • 1/4" Hex bit lock "Turbo sleeve" extension with 1/4" to 1/4" adapter
  • 1/4" Bits: T8, T10, T15, T20, T25, T27, T30, T40, T45, T50, PH3, Slot 5.5
  • 1/4" Bits: H1.5, H2, H2.5, H3, H4, H5, H5.5, H6, H7, H8, H10, PH2
  • 1/4" Dr. MIT sockets: 6mm (E8), 8mm (E10), 10mm (E12), 11mm (E14), 12mm
  • 3/8" Dr. MIT sockets: 13, 14, 15, 17mm
  • 3/8" Dr. Spark plug sockets: 14 & 16mm
  • 3/8" Dr. 125mm PopLock® extension with outer Hex 16mm
  • 8, 12, 14, 16mm Open end ring spanners, MIT on ring side
  • 10 x 11mm Open end spanner
  • 13mm Open end ratchet spanner with 3/8" locking socket adapter
  • Tire gauge "small pen type" 0.4 to 3.5Kg & 5 to 50Psi
  • Plier cutting long nose vise grip 169mm
  • Cable ties x 10 pcs
  • Socket holder 5 x 1/4" & 4 x 3/8"
  • 600 Den double layer Tetoron pouch bag
Suzuki Add-On Pouch (52536)
  • 3/8" Dr. MIT socket: 22, 24mm
  • 3/8" Dr. Aluminum socket: 32mm (max 180 Nm)
  • Hex 24mm Dr. Aluminum socket: 36mm (max 210 Nm)
  • 3/8" Dr. Aluminum Hex axle tool 17-22mm/24-19mm (max 120 Nm)
  • 3/8" Dr. 72-Tooth Super Light Ratchet
  • 3/8" Dr. Heavy duty magnetic locking 1/4" bits socket
  • 17mm Open end ring spanners, MIT on ring side
  • 600 Den double-layer Tetoron Add-On Pouch
  • 210 Den water-resistant nylon bag (7.4 in x 15 in)

Fits

Model Year
DR-Z400S / SM 2000 to present
V-Strom 650 2004 to present
V-Strom 1000/1050 2002 to present
Hayabusa 1999 to present

For the front axle nut, these models need the 3/8" Dr. Aluminum Socket, 27mm 6-Point.

Model Year
GSX-R600 2001 to present
GSX-S750 2015 to 2023
V-Strom 800DE 2023 to present

Weight: 5 lb 8 oz (2.5 kg)
Open: W 49 x H 26.5cm (W 19.29" x H 10.43")
Rolled: Ø 10 x H 26.5cm (Ø 3.93" x H 10.43")

For service and repairs, in the garage or roadside.

Not in this roll, and needed for some models:

Riding GSX-R600, GSX-S750 or V-Strom 800DE?

Your model needs the 27mm ALU Socket for the front axle nut.
